Grades
-
316 Stainless Steel (1.4401)
-
304 Stainless Steel (1.4301)
-
APPLICATIONS
-
Building Cross Tie
-
Wall Tie Bar
-
Lateral Restraint Bar
-
Masonry Reinforcement
-
Bridge Cross Tie
-

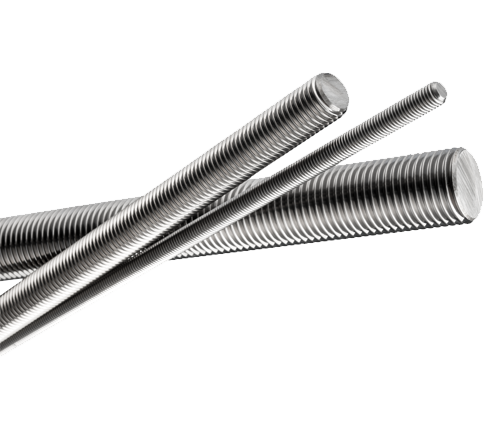

STAINLESS STEEL METRIC
-
Standard threads manufactured to BS EN 3506
-
Mechanical Proerties to BS EN 3506
-
M6 to M76 isometric threads to BS3643
-
Up to 6 metre lenghts
-
Nuts, couplers, washers, turnbuckles to suit
Stainless Steel has a far greater corrosion resistance than normal mild steel. It is used for applications requiring high corrosion resistance or extended life. It is an increasingly popular construction material with its whole life cost benefits contributing to towards more sustainable development.
-
304, 316 Stainless Steel Chemistry & Specifications
Strength Class Min. UTS N/mm² Min. Yield N/mm² Elongation at Failure 50 500 210 0.6D 70 700 450 0.4D 80 800 600 0.3D Thread Weight per metre Strength Class 70 Class 80 0.2% proof UTS 0.2% proof UTS Kg/m kN kN kN kN M12 0.72 41.0 64.0 54.0 73.0 M16 1.31 70.7 109.9 94.2 125.6 M20 2.05 110.3 171.5 147.0 196.0 M24 2.96 158.9 247.1 211.8 282.4 M27 3.83 206.6 321.3 275.4 367.2 M30 4.70 252.6 392.7 336.6 448.8 M33 5.78 312.3 485.8 416.4 555.2 M36 6.84 367.7 571.9 490.2 653.6 M39 8.14 439.2 683.2 585.6 780.8 M42 9.38 504.5 784.7 672.6 896.6 M45 10.90 587.7 914.2 783.6 1044.8 M48 12.32 662.9 1031.1 883.8 1178.4 M52 14.65 791.1 1230.6 1054.8 1406.4
