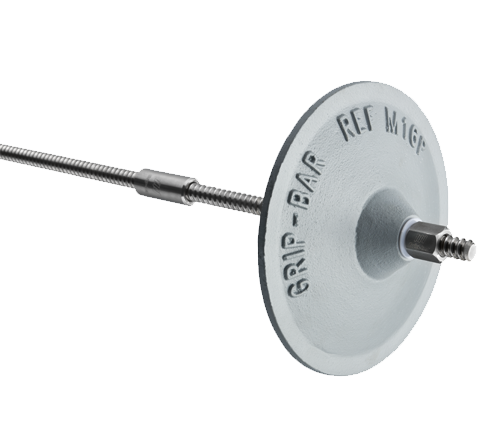

DUCTILE IRON BEARING PLATES
-
Traditional shape with optimised weight
-
Designed to provide low bearing stress on masonry structures
-
Pattress plates to suit bar diameters from 16 to 39 mm
-

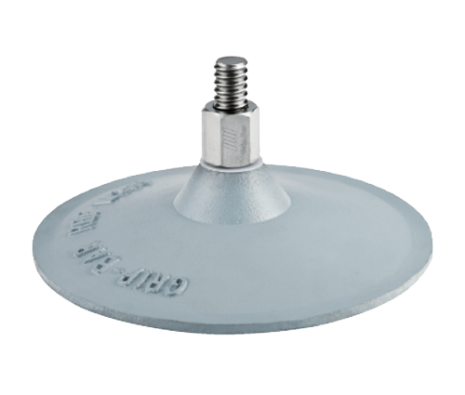

Standard 8° rotation pattress plates in stock
-

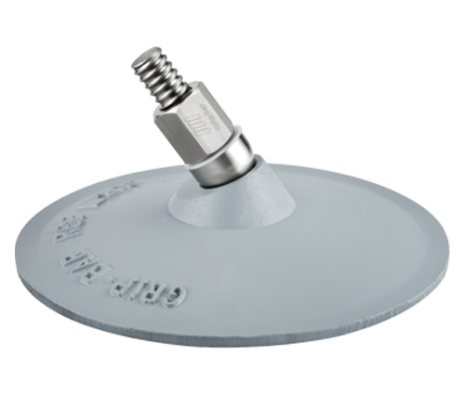

Self aligning pattress plates can cater for up to 45° misalignment
-
FABRICATED BEARING PLATES
-
Stainless UK manufacture stainless steel bearing plates to order. These can be produced in either Grade 304 or Grade 316 stainless steel and in a range of specifications to meet customers' individual requirements
-
Stainless steeel bearing plates can be made to allow either up to 8° of misalignment or up to 45° of misalignment
-
Stainless UK can also supply a full range of Grip-Bar® stainless steel tie bars and fixings
-

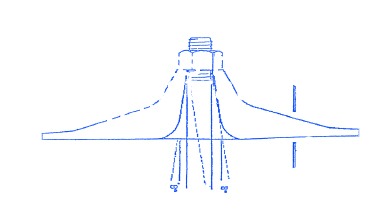

DUCTILE IRON STANDARD 8° BEARING PLATES
-
Maximum misalignment +- 8°
-
Material ductile iron (SG)
-
Finish: grey primer as standard
-
Design stress ratio:
Stress in substrate/Stress in bar = 1/240
-

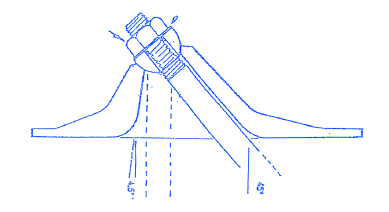

DUCTILE IRON SELF ALIGNING 45° BEARING PLATES
-
Maximum misalignment +- 45°
-
Material ductile iron (SG)
-
Finish: grey primer as standard
-
Design stress ratio:
Stress in substrate/Stress in bar = 1/220
-
BENEFITS
-
Comprehensive range to suit all applications
-
Optimised shape-high strength with low weight
-
Aesthetically superior to fabricated plates
-
Ductile iron (SG) (Spheroldial Graphite to ISO 1083 / JS / 450-10 / S)
-
Readily available
-
APPLICATIONS
-
Buildings
-
Retaining walls
-
Bridges
-
Soft stone
-
Concrete
-
Rock
-
Reference Nominal Bar size Max Design Load Nominal Dimensions Approx. Weight Approx. 45° 8° mm kN Base Dia mm Height mm Kg MS16P M16P 16 78 225 50 4.2 MS20P M20P 20 122 280 60 8.0 MS24P M24P 24 176 335 80 12.3 MS30P M30P 30 280 420 90 25.3 MS39P M39P 39 490 545 120 57.0

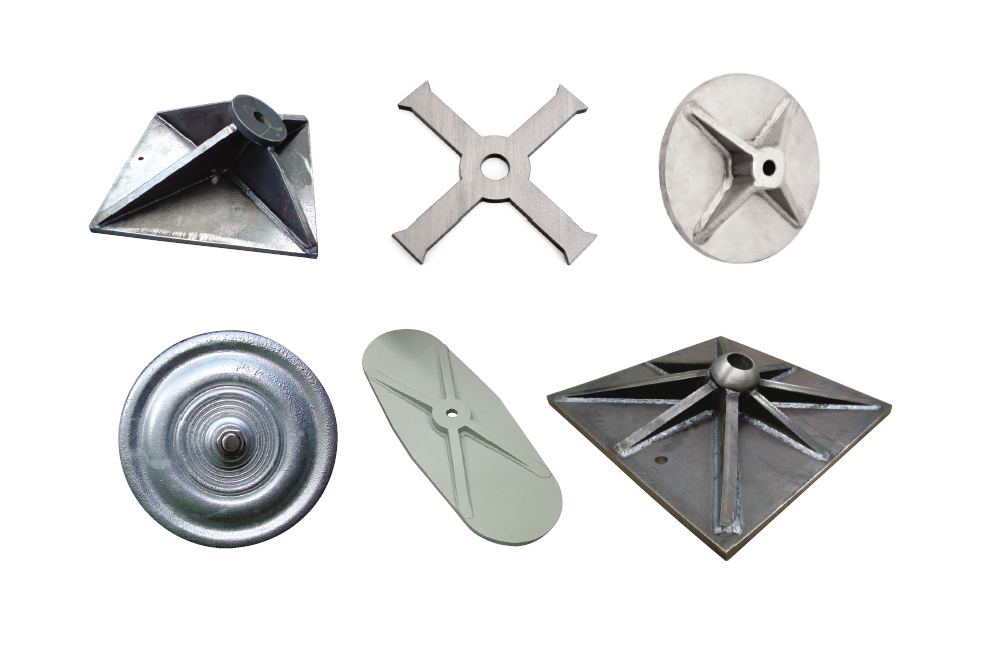

Custom Plate Designs
Plates are manufactured to customer specific requirements
GRIP BAR
Ideal for Rock bolts, Soil Nails, Bridge Strengthening, Building and Bridge cross ties, Ground anchors, Holding down bolts.

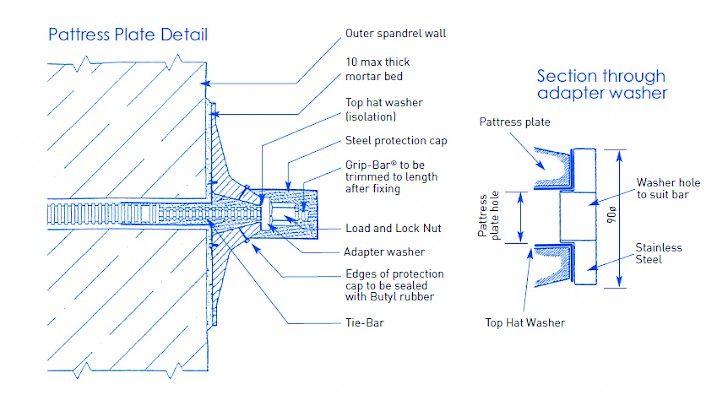

TOP HAT WASHER
Used as isolation washer to avoid bimetallic corrosion between the ductile iron / mild steel pattress plate and the stainless steel bar.
GROUT HOLE
Plates can be threaded 3/8 bsp enabling a grout tube to be attached. A breather hole can be machined if required.
HEMISPHERICAL WASHER
For use with either a dished, fabricated or ductile iron plate which requires more than 8 degree misalignment.
GRIP SOCK
A flexible sock which fits over the anchor bar. As it is filled with grout it expands into cracks and holes.
PROTECTION CAP
Caps are designed to protect the bar and nut from atmospheric conditions and also stop tampering.
REDUCER WASHER
Allow a small diameter bar to be used with a larger pattress or washer plate.
LANTERN SPACERS
Centralisation of single bar within a bore hole enables an even flow of grout around the bar.
HEMI NUT
Hemi nuts can be supplied to suit a wide range of plates. They enable a greater degree of misalignment.
